What is a localised drain patch repair?

A drain patch repair is a targeted 1-metre fibreglass sleeve coated in high-strength silicate resin. It is wrapped around an inflatable packer, positioned over a pipe defect using a camera, and inflated against the inner pipe wall until cured.

When is a patch repair better than full drain relining?

Patch repairs are ideal when a pipe is structurally sound overall but has an isolated crack, open joint, or single root intrusion point. It costs significantly less than relining an entire 15-metre pipe run.

How long does a patch repair take to cure?

The silicate resin cures rigid inside the pipe in approximately 60 minutes ambient curing time, restoring full flow and structural strength immediately.

Does a patch repair stop tree roots from growing back?

Yes! Once roots are cleared with mechanical cutters, the patch forms an airtight, watertight bond against the pipe wall, blocking root re-entry permanently.

What guarantee do I get on a patch repair?

Every localised patch repair comes with a written 10-Year Guarantee and a design lifespan exceeding 50 years.

Targeted No-Dig Spot Repairs

Localised Drain Patch Repairs

Camera inspection found an isolated crack, open joint, or tree root entry point in your pipe? A 1-metre fibreglass patch repair seals the exact leak from the inside without digging or relining the entire drain. Call 0800 088 4258 for a free quote.

Precision 1-metre fibreglass patch positioned via HD camera
High-strength silicate resin cures rigid in just 60 minutes
Backed by a written 10-Year Guarantee and 50+ year design life
Costs 50% less than relining a full 15-metre pipe run

Fixed Price Guarantee

60-Min Average Arrival

Call us at0800 088 4258

Prefer a written quote? Complete the enquiry form.

Inquire About Localised Patch RepairsStep 1 of 5

Step 1: Choose Your Service

Service Required *

Call Now0800 088 4258

Targeted 1-Metre Fibreglass Patch Sleeve

Cures Rigid in Just 60 Minutes

Written 10-Year Guarantee Included

Zero Digging or Driveway Disturbance

Is a Patch Repair Right for Your Pipe?

Primary Focus:A patch repair is ideal if your underground pipe is sound overall but has 1 or 2 isolated cracks, leaking joints, or root entry points.

Alternative Services:If the pipe has multiple cracks along its entire 15-metre length, full-length No-Dig Drain Relining is more cost-effective.

Service Overview

Fast, Targeted Spot Repairs Without Digging

When a camera inspection finds a single crack or root intrusion in an otherwise healthy pipe, you do not need to reline the entire drain or dig up your lawn. A localised fibreglass patch seals the exact spot.

We wrap a fibreglass sleeve soaked in silicate resin around an inflatable rubber packer. Using a camera, we push the packer down the drain to the exact crack location and inflate it against the pipe wall.

The resin cures rigid in 60 minutes, creating a smooth, watertight seal over the damage. We deflate the packer, run a final camera check, and issue your written 10-Year Guarantee.

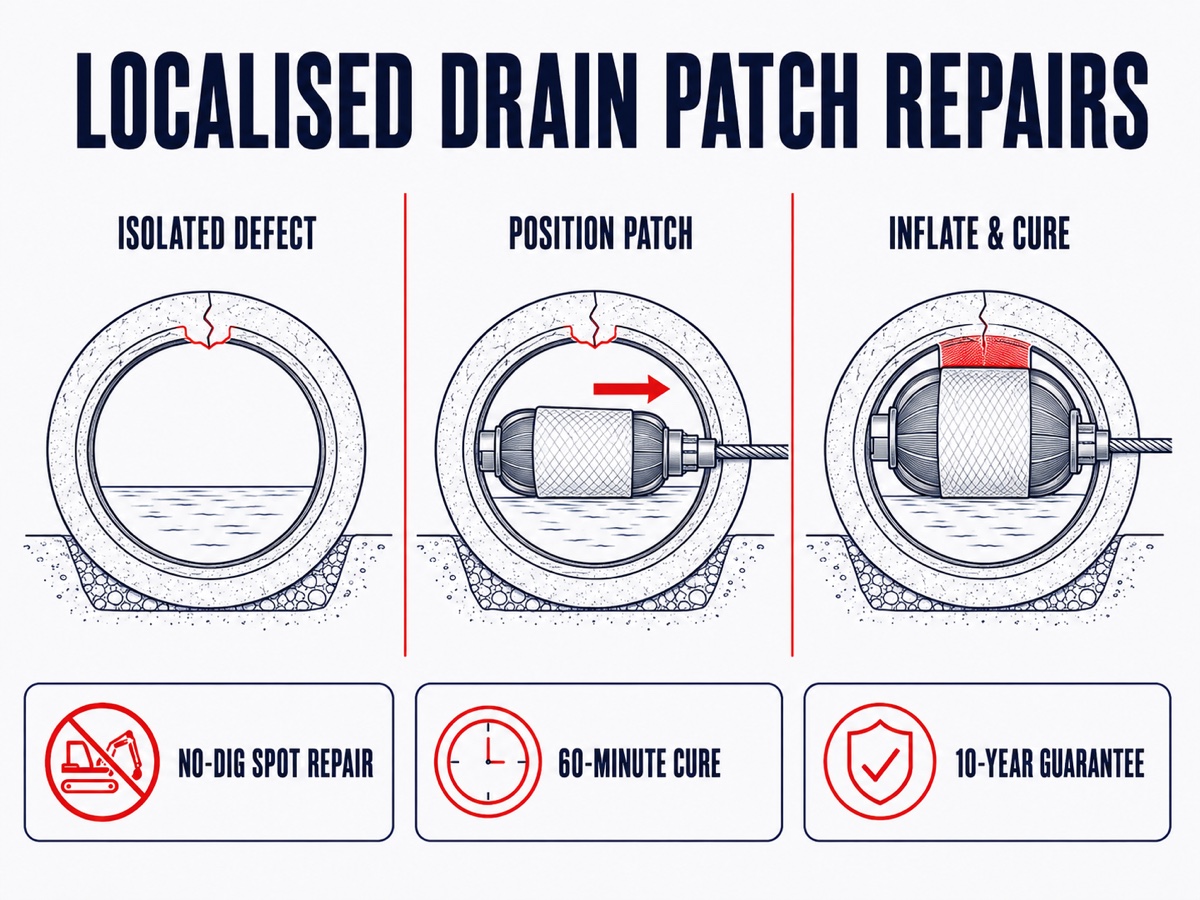

Fast, Targeted Spot Repairs Without Digging Technical Infographic Diagram

Technical Schematic

Engineering Diagnostic & Process Diagram

Verified UK standards diagram illustrating pipeline mechanics and technical execution.

When to Choose a Patch Repair

Targeted fibreglass patching for localised pipe defects.

Single Isolated Pipe Cracks

Seals longitudinal hairline fractures preventing wastewater leaking into surrounding subsoil.

Tree Root Invasion at One Joint

Permanently seals displaced pipe joint gaps where roots enter to seek moisture.

Sealing Disused Branch Connections

Closes off redundant junction openings to stop debris catching and creating blockages.

Preventing Soil Erosion Under Patios

Seals leaking joints beneath expensive paved driveways without lifting a single brick.

Our Patch Repair Capabilities

Clean, targeted structural spot repair.

High-Grade Silicate Resin Matrices

Resistant to high temperatures, household chemicals, and root penetration.

Post-Repair Camera Inspection

Includes video proof showing the smooth, watertight patch bond.

Written 10-Year Guarantee

Full written 10-year warranty certificate for your home records.

Important Things to Know

Patching is designed for isolated cracks; if defects exist every metre along the pipe, full-length relining is recommended.
The host pipe must hold its round shape so the inflated packer can press the sleeve against the wall evenly.
